DIN 53295 Test Fixture

DIN 53295 Test Fixture
Peel resistance of adhesive bonds, e.g. for honeycomb sandwich constructions

This test method covers the determination of the peel resistance of adhesive bonds between a relatively flexible adherend and a rigid adherend; and the relatively flexible facing of a sandwich structure and its core, when tested under specified conditions.

Max. load: 10 kN
Material: Aluminium (drum), steel (rest)
Weight: 3.4 kg (drum) 4.35 kg (total weight incl. adapter part)
Scope of delivery: 1 fixture, 1 upper grip, 1 adjustable table

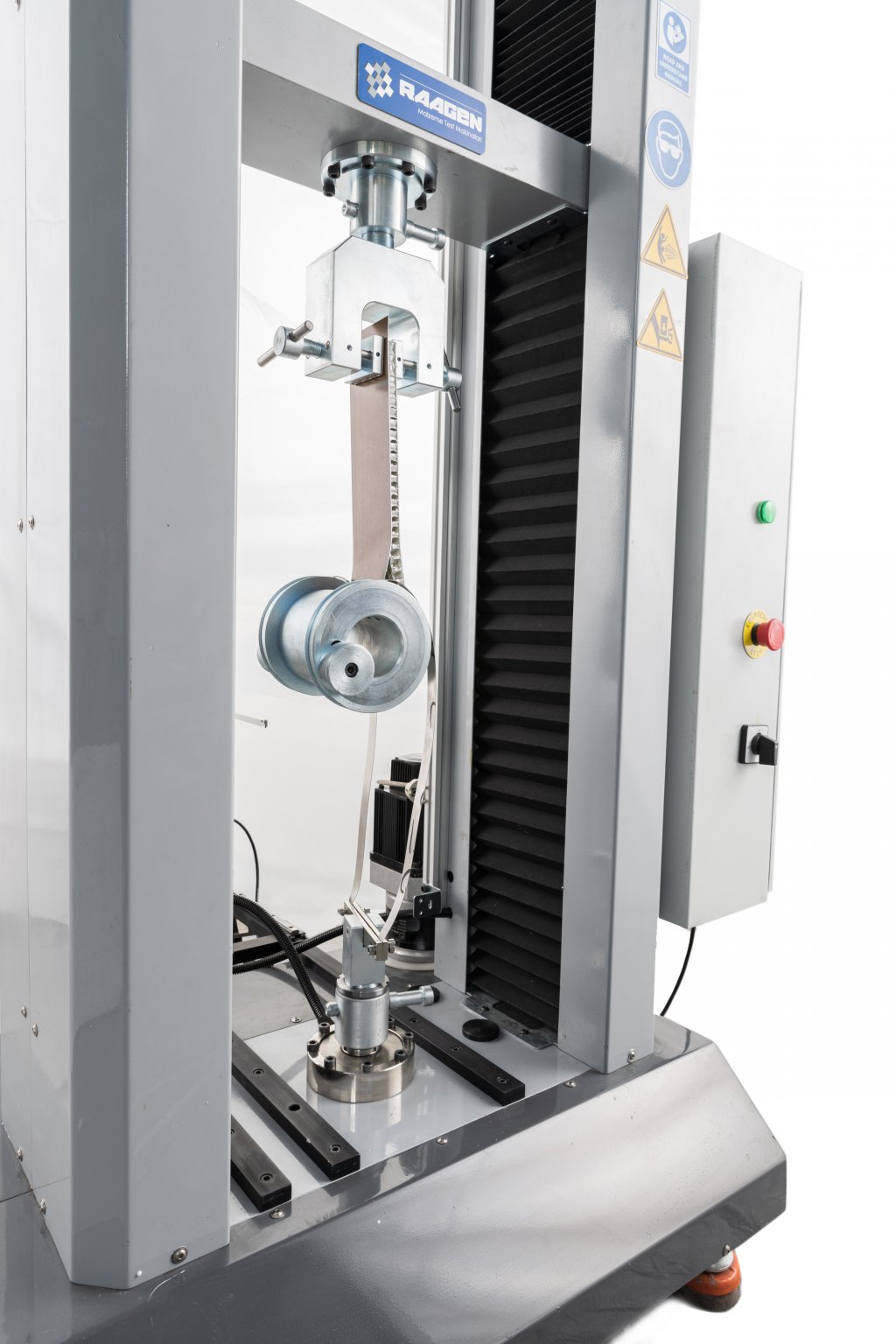

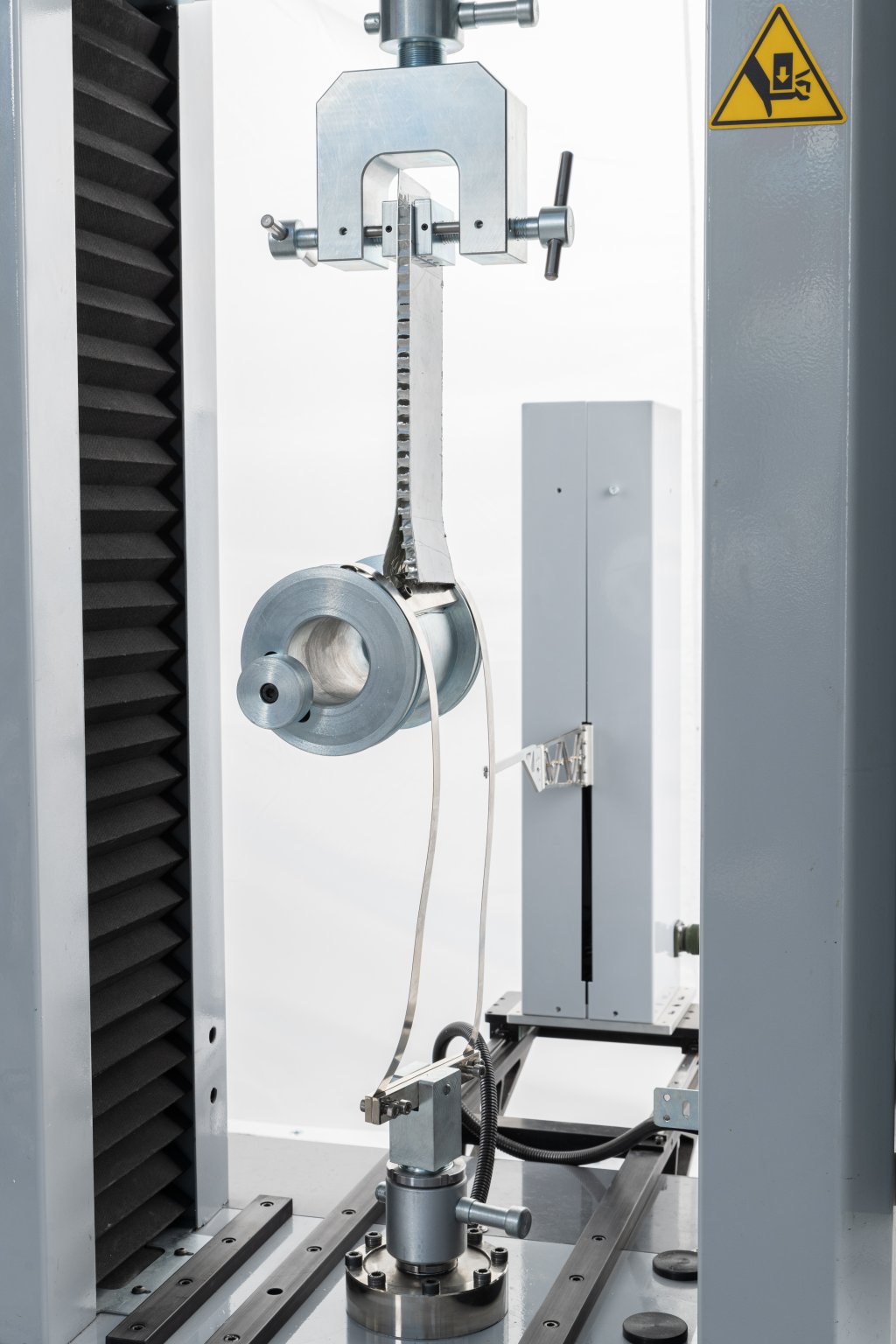

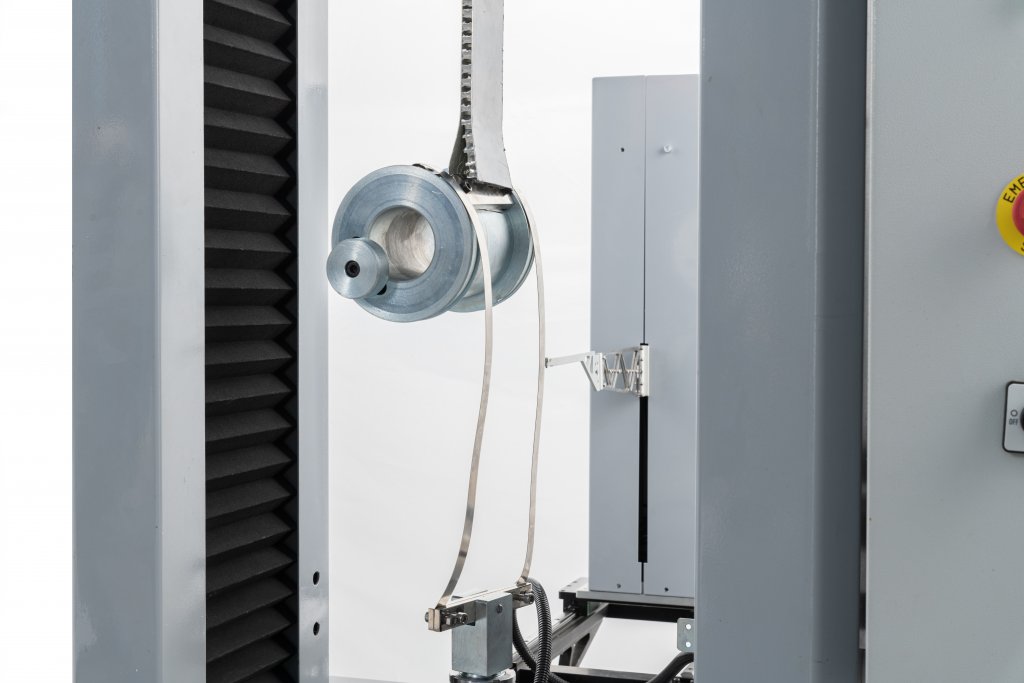

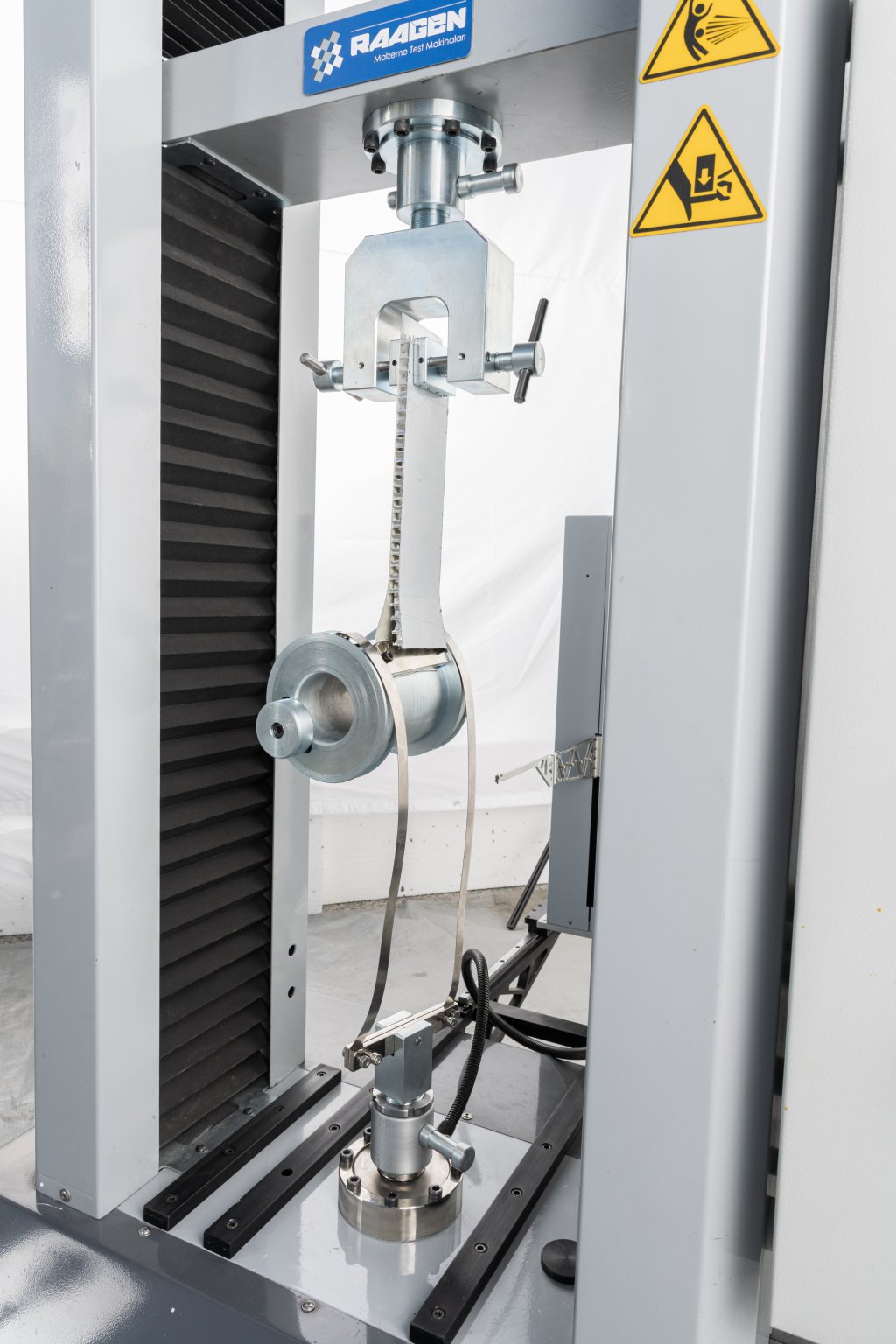

Climbing drum peel test fixture to determine peel resistance of adhesive bonds between a relatively flexible adherend and a rigid adherend; and the relatively flexible facing of a sandwich structure and its core according to ASTM-D1781.

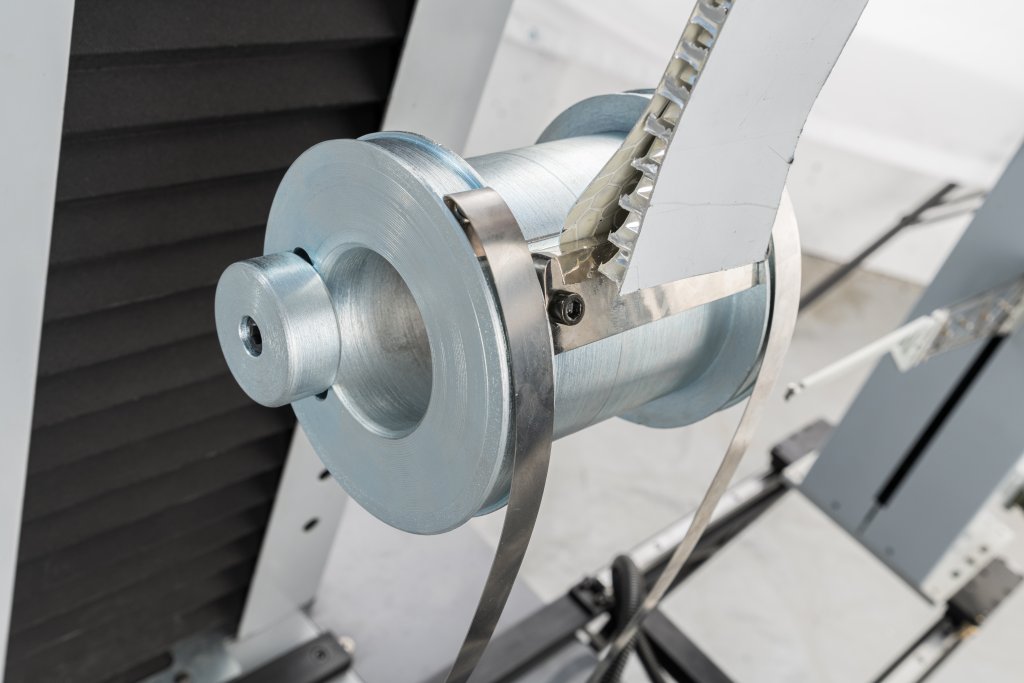

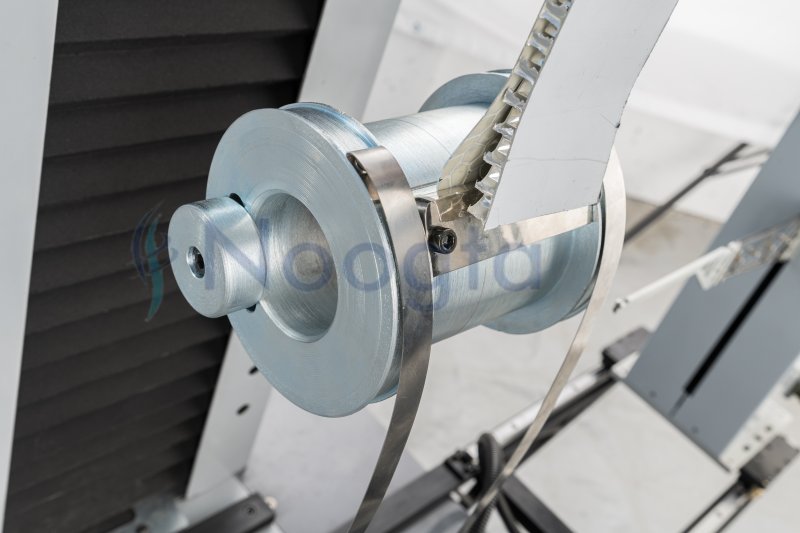

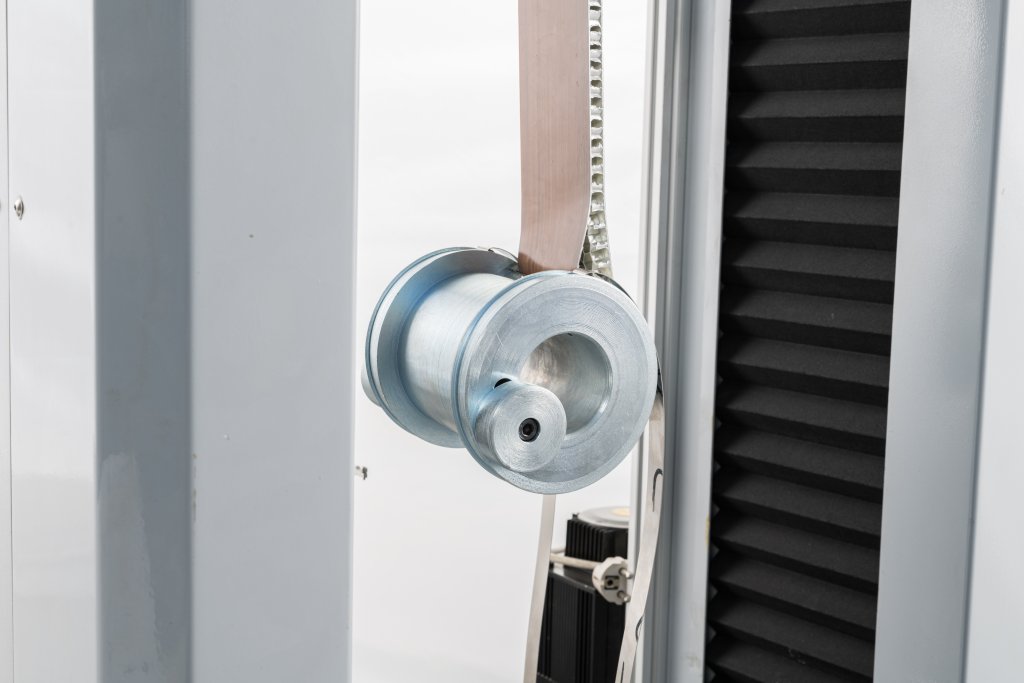

The fixture consists of a flanged drum, flexible loading straps connected to adapter, and clamps for holding the test specimen.
