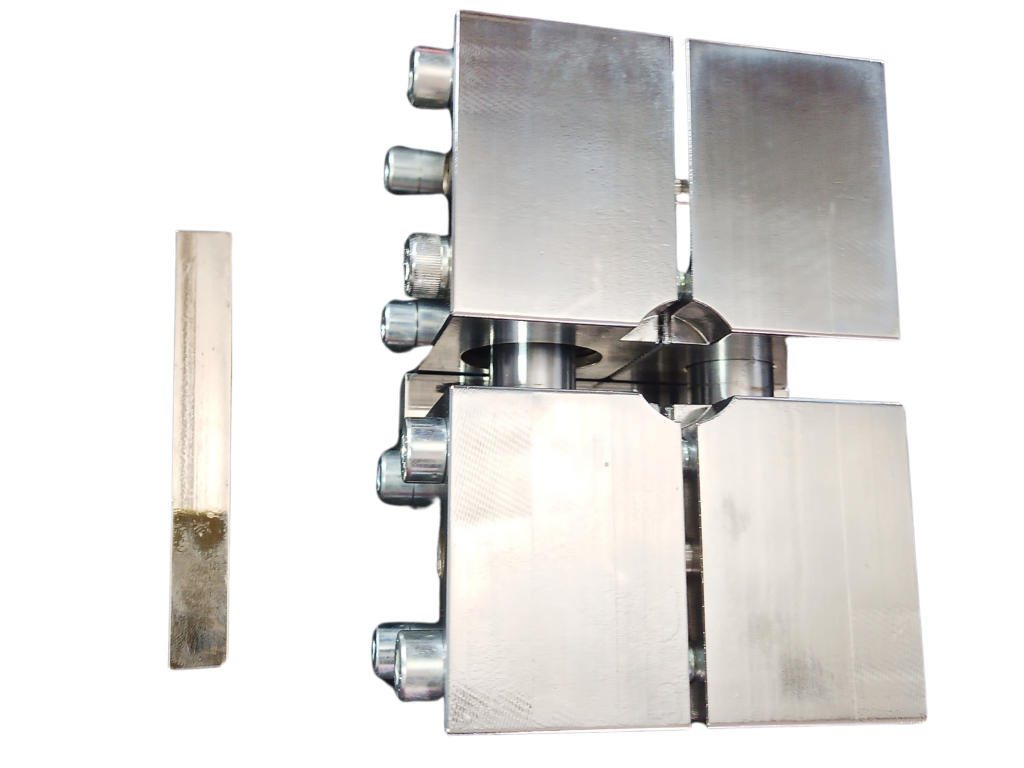

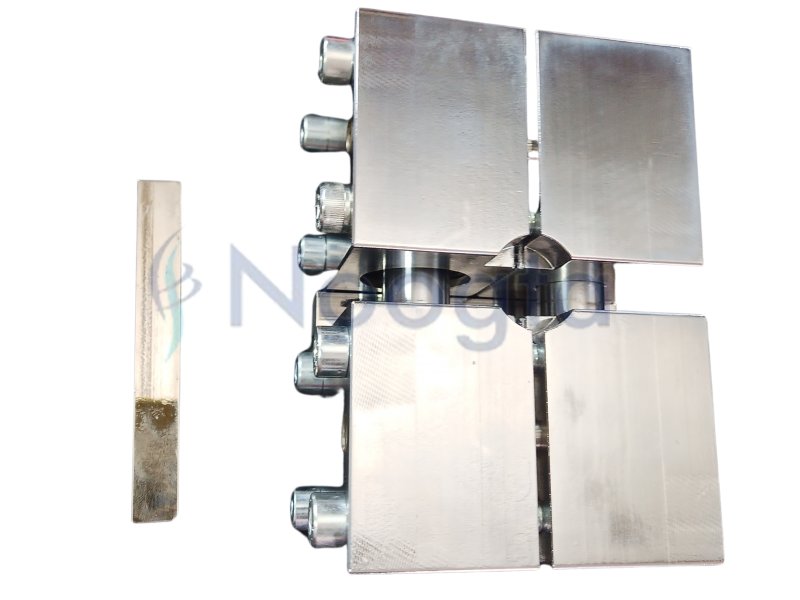

ASTM D6641 Test Fixture
Standard Test Method for Compressive Properties of Polymer Matrix Composite Materials Using a Combined Loading Compression (CLC) Test Fixture
Using a combined loading compression (CLC) or equivalent test fixture, ASTM D 6641 specifies a process for determining the compressive strength and stiffness parameters of polymer matrix composite materials. Combined Loading Compression (CLC) uses a mixture of end and shear loading, in this method the shear stresses are reduced, and it is possible to generate the clamping forces using bolted clamps.
|
ItemNo |
ASTMD6641-RT01 |
|
Max. load |
100 kN |
|
Specimen gauge length |
12.7 mm (0.5 in) |
|
Material |
Hardened Steel, Nickel-plated |
|
Gripping surface |
64x 40 mm (HxW)Serrated (pyramids 1.2x45°)or diamond-coated |
|
Temperature range |
-20°… +80°CFurther temperature ranges on request |
|
Weight |
Approx. 6,25 kg |
|
Scope of delivery |

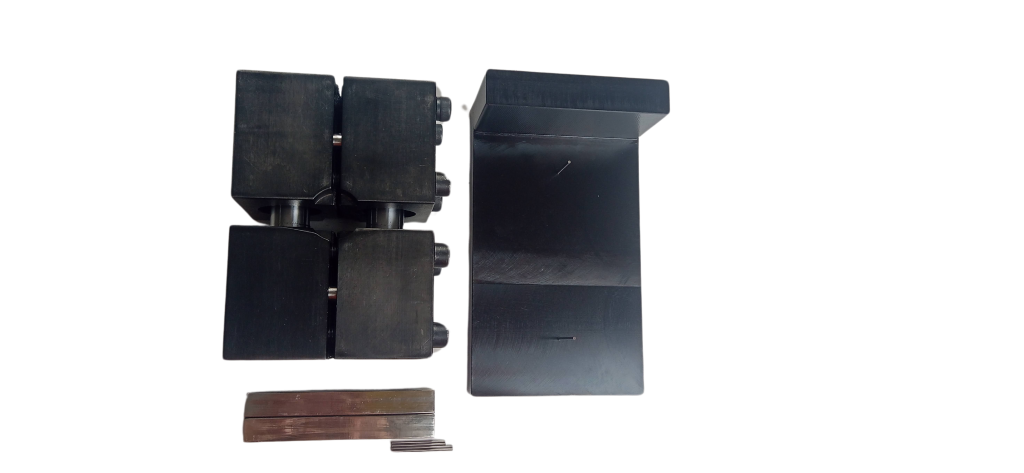

1 fixture incl. alignment bars and specimen positioning apparatus . |
Contact us to get more detailed information about test fixtures and to request a quote!
